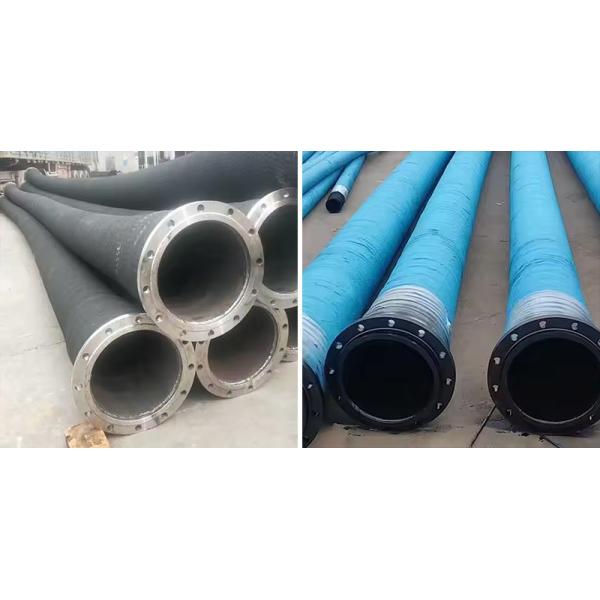

Rubber 8 Inch Slurry Suction Hose With Smooth Inner Surface

Brand Name : Hongruntong Marine

Model Number : HM-SSH60

Certification : ABS, DNV, RMRS, CCS, LR, BV, SGS, V-Trust

Place of Origin : Beijing, China

MOQ : 1

Price : $13-$956

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 6523 Pcs Per Month

Delivery Time : 5-7 Work Days

Packaging Details : Wooden Pallets, Wooden Box

Product Name : Slurry Suction Hose

Reinforcement : High Strength Synthetic Cord with Helix Wire

Material : Natural Rubber

Diameter : 152mm-1300mm

Working pressure : 0.4MPa to 2.5MPa

Advantages : Wear Resistance

Feature : Corrosion Resistance

End Connections : Built In Steel Flanges

Application : for Suction and Discharge Of Abrasive Materials In Slurry Applications

Temperature : -40℃ to 80℃

Keywords : Rubber Hose

Contact Now

Rubber 8 Inch Slurry Suction Hose With Smooth Inner Surface

Designed for heavy-duty slurry transfer, these hoses combine abrasion-resistant inner layers with steel wire reinforcement to handle aggressive materials like coal, ore, and silt. Their robust construction prevents collapse under vacuum, making them ideal for dredging, mineral processing, and tunneling applications. The outer cover resists UV, oil, and weathering, ensuring long-term performance.

With high-pressure ratings and excellent bend flexibility, they optimize pump efficiency and reduce energy consumption. Safety features include anti-static and flame-retardant options for hazardous environments. Easy to handle and repair, these hoses are a cost-effective solution for demanding slurry transport needs.

Rubber 8 Inch Slurry Suction Hose With Smooth Inner Surface Rubber 8 Inch Slurry Suction Hose With Smooth Inner Surface Rubber 8 Inch Slurry Suction Hose With Smooth Inner Surface
Construction
Inner Liner Natural rubber in various thicknesses and compounds
Reinforcement Nylon cord fabric with spring steel wire helix
Outer Cover Black abrasion and UV-resistant natural rubber
Specifications
Hose Size 50~1500
Hose Length Up to 12m
Pressure Rating 5-40bar
Temperature Rating -40°C to +80°C
Safety Factor 4:1
Bend Radius 8 to 10 times diameter (Standard)
End Fittings Fixed flanges, swivel flanges, plain cut, cuffed, swollen, custom fittings
Flange Types D, E, F, ANSI 150, ANSI 300, Custom
Materials Stainless steel, Hot-dipped galvanised, Carbon steel, Custom paint
Key Features
  • Custom Wear Indicators - Optional visual wear markers built into outer layer for predictive maintenance planning
  • Low Memory Flexibility - Retains original shape after prolonged storage/coiling without permanent deformation
  • Impact Resistant Covers - Thickened outer layers protect against mechanical damage from rocks and job site debris
  • Floating Configurations - Buoyant designs available for dredging applications with integrated flotation chambers
Applications
  • Slurry wall construction
  • Piling operations
  • Hydro demolition
Manufacturing Advantages
  • Automated Calendering Lines - Precision rubber sheeting with ±0.2mm thickness tolerance for uniform liner quality
  • Computerized Vulcanization - PLC-controlled curing process maintains exact temperature/pressure profiles
  • Dedicated R&D Center - 15 engineer team developing next-gen hose solutions with annual 5% revenue reinvestment
  • Mega Testing Capabilities - In-house lab for abrasion (DIN 53516), pressure (ISO 1402), and flex fatigue testing
Rubber 8 Inch Slurry Suction Hose With Smooth Inner Surface Rubber 8 Inch Slurry Suction Hose With Smooth Inner Surface Rubber 8 Inch Slurry Suction Hose With Smooth Inner Surface

Rubber 8 Inch Slurry Suction Hose With Smooth Inner Surface

Rubber 8 Inch Slurry Suction Hose With Smooth Inner Surface

Frequently Asked Questions
Weight per meter?

Varies by diameter: 6" hose ≈ 15kg/m; 12" ≈ 35kg/m (floating options 30% lighter)

Repairability?

Field-repairable with vulcanization kits for cuts <25% of diameter

Static pressure test standard?

Hydrostatically tested to 1.5x working pressure per ISO 1402

UV resistance guarantee?

Outer cover maintains flexibility after 2000+ hours UV exposure per ASTM G154
